  • DOTB20 Aluminium Evaporator Direct Cooled Block Ice Machine


    OMT 2ton Direct Cooled Block Ice Machine is a new type of block ice machine. Different from conventional brine pool system, the direct cooling block ice machine has an aluminium grid as evaporator. Fill water into the grid and freeze directly.

    The Aluminium grid is actually hollow inside which refrigerant evaporate freezing the ice block directly.


    OMT 2ton Direct Cooled Block Ice Machine Technical Parameters:

    Model NumberDOTB20
    Machine Capacity2000KG/24HRS
    Weight of Ice Block5KG/PCS (available for 10KG, 20KG etc.)
    Ice Block Dimension125*95*500MM
    MaterialIce MoldAluminun Plate, corrosion free
    Mainframe Stainless Steel 304
    Ice Freezing Time48Blocks/150Mins
    RefrigerantR22 or R404A
    Cooling WayAir cooled(Water cooled)
    Compressor10HP, Brand: Copeland/USA
    Supply Power220V~480V, 50Hz/60Hz, 3P
    Machine Power30KW
    Machinery Dimensions3800*1100*1700(H)MM
    Ice Harvest WayManual Forklift
    Warranty12 Months



    OMT Direct Cooled Block Ice Machine Features:

    1. Edible Ice.
    Evaporated directly without using chemical and salt water, the ice is clean and can be eaten directly.

    2. Fast freezing time.
    You can get 5kg ice in 140minutes and 3-3.5hrs for 10kg ice,much faster compared with salt water type ice machine.

    3. High Quality Material.
    Ice moulds are made of aluminum plate, mainframe adopts anti-rust and anti-corrosion material--stainless steel.

    4. Compact design and saves space.

    5. Simple to operate and no need skilled worker.




    OMT 2ton Direct Cooled Block Ice Machine Pictures :

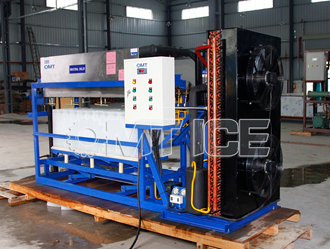

    Machine Side View (Air Cooled)
    Produce Bolck IceOMT Bolck Ice
    Ice Can with Fin
    2.5KG Block Ice5KG Block Ice



    OMT Direct Cooled Block Ice Machine Series:

    Item Capacity
    (T/24DAY)
    Compressor Power(HP)Dimension
    (L*W*H) (MM)
    Cooling Way
    DOTB10161800*1100*1200Air Cooled
    DOTB202104260*900*1950Air Cooled
    DOTB303153976*1468*2095Air Cooled
    DOTB505254660*1712*2180Water Cooled
    DOTB606305236*1790*2095Water Cooled
    DOTB10010603300*1800*2250Water Cooled
    DOTB2002035*32800*1500*2200Water Cooled



    ⊙ Refrigerant: R22 or R404a
    ⊙ Supply Power: 220V~480V, 50Hz/60Hz, 3P;
    ⊙ Standard Working Conditions: Input water temp: 21℃; Ambient temp: 25℃; Condensing temp: 40℃;
    ⊙ Model and specifications can be subject to change without notice.



    Machine Configuration List:


    Component ItemBrand and Origin
    Compressor Copeland/Bitzer
    PLC controllerSiemens/ Germany
    Oil separator  EMERSON/ USA
    Electrical componentsLG (LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/ Denmark
    Low pressure controllerDANFOSS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
