OMT 2ton Direct Cooled Block Ice Machine is a new type of block ice machine. Different from conventional brine pool system, the direct cooling block ice machine has an aluminium grid as evaporator. Fill water into the grid and freeze directly.

The Aluminium grid is actually hollow inside which refrigerant evaporate freezing the ice block directly.


OMT 2ton Direct Cooled Block Ice Machine Technical Parameters:

OMT Direct Cooled Block Ice Machine Features:

1. Edible Ice.
Evaporated directly without using chemical and salt water, the ice is clean and can be eaten directly.

2. Fast freezing time.
You can get 5kg ice in 140minutes and 3-3.5hrs for 10kg ice,much faster compared with salt water type ice machine.

3. High Quality Material.
Ice moulds are made of aluminum plate, mainframe adopts anti-rust and anti-corrosion material--stainless steel.

4. Compact design and saves space.

5. Simple to operate and no need skilled worker.


OMT 2ton Direct Cooled Block Ice Machine Pictures :

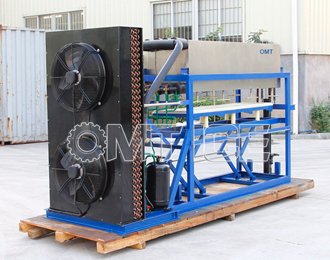

Machine Side View (Air Cooled)

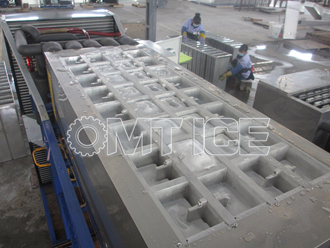

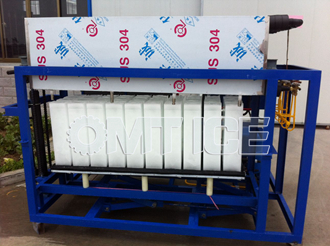

Produce Bolck Ice	OMT Bolck Ice

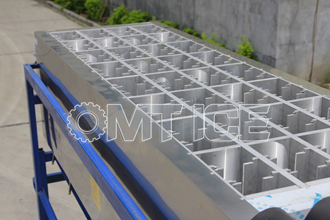

Ice Can with Fin

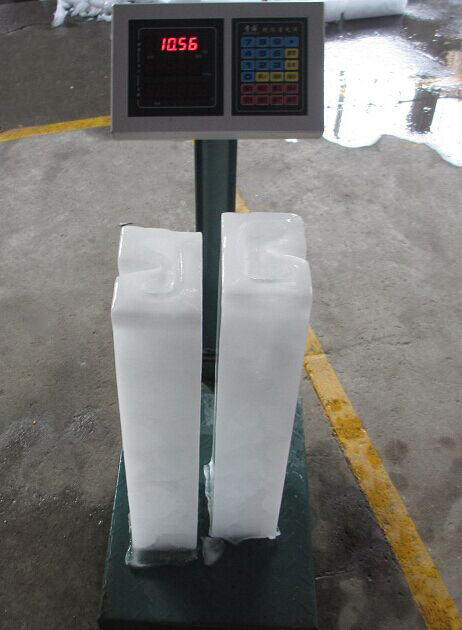

2.5KG Block Ice	5KG Block Ice

OMT Direct Cooled Block Ice Machine Series:

⊙ Refrigerant: R22 or R404a
⊙ Supply Power: 220V~480V, 50Hz/60Hz, 3P;
⊙ Standard Working Conditions: Input water temp: 21℃; Ambient temp: 25℃; Condensing temp: 40℃;
⊙ Model and specifications can be subject to change without notice.


Machine Configuration List:
