OMT Mini Cube Ice Machine produces 22*22*22mm cube ice with the weight of 14gram, and capacity of this air cooled machine is 60kg with a dimension of 500*590*790mm, which saves space and works under the voltage of 220V, 50Hz/60Hz, 1P.

OMT 60kg Mini Cube Ice Machine Technical Parameter

OMT Mini Cube Ice Machine Features:

1)Small design, space-saving and easy to transport.

2)Strong and durable.

 All our machine adopts world famous brand components, strict process control, low failure rate and long service life.

3)PLC automatic control system.

Allow automatically adjust ice thickness, self-adapt to ambient temperature, automatic water supply, ice freezing and ice falling.

4)Environmental refrigerant.
The machine adopts freon–free R134A/R404A refrigerant, which is a new healthy ice-making mode.

5)Santary, clean and edible Ice.

The frame and outer shell plate adopts stainless steel ,and ice molds adopts Nickel-plated material, which make the ice reaches international standard for hygiene.

OMT 60kg Mini Cube Ice Machine Pictures :

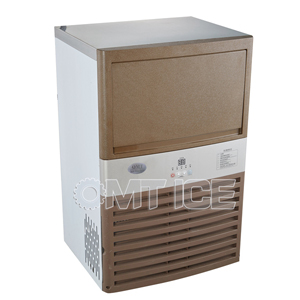

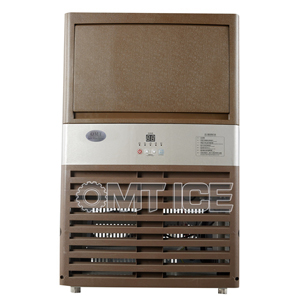

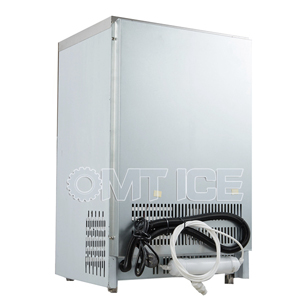

Machine Front View	Machine Back View

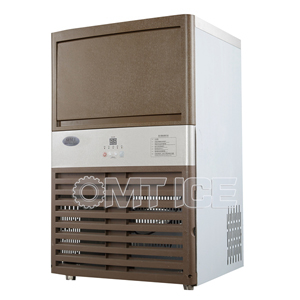

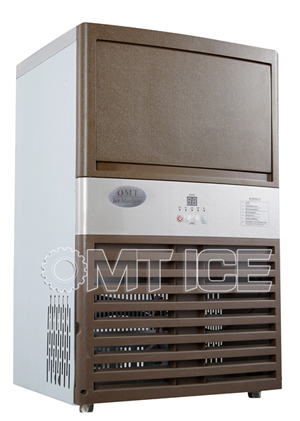

Machine Side View

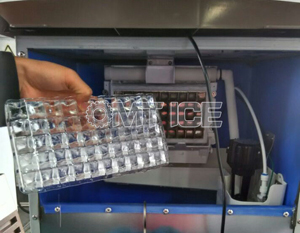

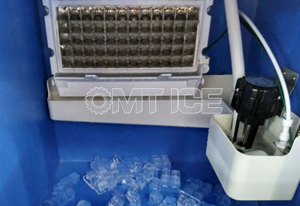

Ice Producing Process	Santary and Clean Cube Ice

OMT Mini Cube Ice Machine Series:

⊙ Refrigerant:R22/ R404A/R134A
⊙ Supply Power:220V, 60Hz, 3Phase; 380V, 60Hz, 3Phase; 440V, 60Hz, 3Phase;
⊙ Working Conditions: Input Water Temp: 21℃; Ambient Temp: 25℃; Evaporator Temp: -20℃; Condensing Temp: 40℃
⊙ Model and specifications can be changed without notice.

Machine Configuration List:
