The fishing industry is the largest user of flake ice machines. Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the seafood fresh.
OMT 10ton Flake Ice Machine Technical Parameter:
| Model Number | OTF100 | |||
| Machine Capacity(KG/24HRS) | 10000 | |||
| Ice Thickness(MM) | 1.8~2.2 | |||
| Ice Freezing Time(MINUTE) | 1 | |||
| Material of Evaporator Drum | Stainless Steel 304/Carbon Steel Chrome | |||
| Compressor Brand | Bock/Bitzer/Copeland | |||
| Refrigerant | R22/R404A | |||
| Cooling Way | Water Cooled | |||
| Supply Power | 220V~480V, 50Hz/60Hz, 3P | |||
| Machine Power(KW) | Compressor(HP) | 30 | 27.65 | |
| Motor Power(KW) | 0.75 | |||
| Circulating Water Pump(KW) | 0.4 | |||
| Cooling Water Pump(KW) | 4 | |||
| Cooling Fan Motor(KW) | 1.5 | |||
| Machinery Unit Size(MM) | 2800*2200*2020 | |||
| Machine Unit Weight(KG) | 2600 | |||
| Warranty(MONTHS) | 12 | |||
OMT Flake Ice Machine Features:
1) Strong and Durable parts.
All compressor and refrigerant parts are world first class.
2) Low energy consumption.
Energy consumption saving reaches more than 30% compare with traditional equipment.
3) High quality material.
The evaporator drum are made of anti-rust and anti-corrosion material--stainless steel 304(316) or carbon steel chrome.
4)PLC program Logic Controller.
Provides multiple functions such as automatically turn on and shut down. Ice falling and Ice outgoing automatically, can be connect with automatic ice packing machine or convery belt.
5)Special ice outlet.
Ice discharge automatically without taking ice by hands, matched with ice packing system to pack the ice with plas
OMT 10ton Flake Ice Machine Pictures :

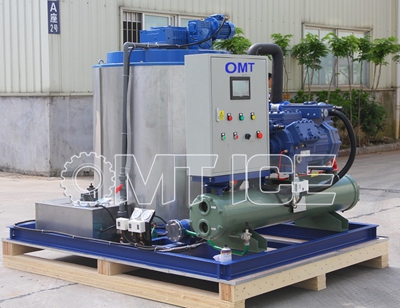

| Machine Front View (WaterCooled Condensor) | Machine Side View |
 |  |
| Carbon Steel Chrome/Stainless Steel Evaporator | Evaporator Structure Chart |
 |  |
| Flake Ice Application (Keep the fish fresh) | |
 |  |
OMT Flake Ice Machine Serie
| Item | Capacity (T/24HRS) | Compressor Power(KW) | Motor Power(KW) | Circulating Water Pump(KW) | Cooling Water Pump(KW) | Cooling Fan Motor(KW) | Machine Dimension(MM) |
| OTF05 | 0.5 | 1.8 | 0.37 | 0.15 | / | 0.11 | 1420*800*1020 |
| OTF10 | 1 | 4.5 | 0.37 | 0.15 | / | 0.22 | 1420*840*1080 |
| OTF20 | 2 | 7.5 | 0.37 | 0.15 | / | 0.75 | 1770*1120*1220 |
| OTF30 | 3 | 9 | 0.37 | 0.15 | / | 0.75 | 1770*1130*1330 |
| OTF50 | 5 | 15 | 0.37 | 0.15 | 2.2 | 1.5 | 2100*1500*1580 |
| OTF80 | 8 | 22.5 | 0.75 | 0.4 | 4 | 1.5 | 2400*2200*1850 |
| OTF100 | 10 | 30 | 0.75 | 0.4 | 4 | 1.5 | 2800*2200*2020 |
| OTF150 | 15 | 2*30 | 1.5 | 0.55 | 4 | 1.5 | 2900*2200*2380 |
| OTF200 | 20 | 66.5 | 0.75 | 0.4 | 5.5 | 2.2 | 3600*2200*2500 |
⊙ Refrigerant:R22 or R404a
⊙ Supply Power: 380~420V, 50Hz, 3Phase; 220V, 60Hz, 3Phase; 380V, 60Hz, 3Phase; 440V, 60Hz, 3Phase;
⊙ Working Conditions: Input Water Temp: 21℃; Ambient Temp: 25℃; Evaporator Temp: -20℃; Condensing Temp: 40℃
⊙ Model and specifications can be changed without notice.
Machine Configuration List:
| Component Item | Brand and Origin |
| Compressor | Danfoss/Manevrop/Bitzer/Bock |
| PLC controller | Siemens/ Germany |
| Oil separator | EMERSON/ USA |
| Electrical components | LG (LS)/South Korea |
| Solenoid valve | CASTAL/Italy |
| High pressure controller | DANFOSS/ Denmark |
| Low pressure controller | DANFOSS/ Denmark |
| Expansion valve | CASTAL/Italy |
| Condenser | Jianguo/Xuemei |
| Evaporator | OMEX/Guangzhou |
