  • OTBC10 Containerized Block Ice Machine


    The working conditions of OMT Containerized Block Ice Machine maintains the stability and performance of the ice machine. Being containerized, the ice machine can work in a relatively isolated environment, where the ambient temperature can be controlled from 20℃ to 25℃, which facilitates the ice making process.
    The whole container has been specially treated and reinforced which is a perfect protection from the physical impact to the machine, and keeps the dust outside.


    OMT 1ton Containerized Block Ice Machine Technical Parameter:

    Model NumberOTBC10
    Machine Capacity1000KG/24HRS
    Weight of Ice Block2.5KG/PCS (available for 5KG, 10KG etc.)
    Ice Block Size75*110*460MM
    MaterialSalt Water TankStainless Steel 304
    Ice Molds
    Ice Freezing Time81PCS/4.8HRS
    405PCS/24HRS
    RefrigerantR22/R404A
    CondenserAir Cooled(Water cooled)
    Supply Power380V, 50Hz, 3P
    Machine PowerCompressor
    Model: MT72
    6HP5.78KW
    Circulating Water Pump    1.1KW
    Air Fan0.18KW
    Machinery Unit Dimension2640*1500*1120MM
    Salt Water Tank Dimension2550*1320*1100MM
    Warranty12 Months
    RemarkCan be equipped with OCR10 cold room


    OMT Containerized Block Ice Machine Features:

    1) Strong and Durable parts.

         All compressor and refrigerant parts are world first class.


    2) Low energy consumption.

         Energy consumption saves up to 30% compare with traditional equipment.


    3) Low maintenance, stable performance.


    4) High quality material.

         The salt water tank and ice moulds are made of stainless steel 304 which is anti-rust and anti-corrosion.


    5) Sophisticated heat insulation technology.

         The ice making tank adopts high density Polyurethane foam for perfect heat insulation.


    OMT 1ton Containerized Block Ice Machine Pictures:

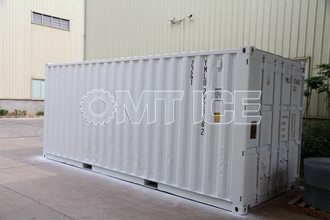

    20 Feet ContainerMachine Set and Cold Room Inside the Container
    10CBM Cold Room(Built of color panels)Salt Water Tank(made of stainless steel 304 )
    Ice Molds(made of stainless steel 304 )10kg Block Ice


    OMT Containerized Block Ice Machine Series:


    ItemCapacity
    (T/24HRS)
    Compressor
    Power(HP)
    Compressor BrandRefrigerantCooling WayRemark
    20 GP Container
    OTBC1015(4)Maneurop/Bitzer/CopelandR22/R404AAir Cooledcan be equipped with OCR10
    cold room
    OTBC20210(9)Maneurop/Bitzer/CopelandR22/R404AAir Cooledcan be equipped with OCR10
    cold room
    OTBC30314(12)Bitzer/
    Copeland
    R22/R404AAir Cooledcan not be equipped with cold
    room
    40 GP/HQ Container
    OTBC30314(12)Bitzer/
    Copeland
    R22/R404AWater Cooledcan be equipped with OCR20
    cold room and crane
    OTBC40423(20)Bitzer/Bock/
    Copeland
    R22/R404AWater Cooledcan be equipped with OCR20
    cold room and crane
    OTBC50528(23)Bitzer/Bock/
    Copeland
    R22/R404AWater Cooledcan be equipped with OCR20
    cold room and crane
    OTBC100650HPBitzer/Bock/
    Copeland
    R22/R404AWater Cooledcan be equipped with crane
    but not cold room


    ⊙ Refrigerant:R22/ R404A
    ⊙ Supply Power:220V, 60Hz, 3Phase; 380V, 60Hz, 3Phase; 440V, 60Hz, 3Phase;
    ⊙ Working Conditions: Input Water Temp: 21℃; Ambient Temp: 25℃; Evaporator Temp: -20℃; Condensing Temp: 40℃
    ⊙ Model and specifications can be changed without notice.


    Machine Configuration List:

    Component ItemBrand and Origin
    Compressor Manurope/Bitzer/Bock/Copeland
    PLC controller

    Siemens/ Germany

    Oil separator  EMERSON/ USA
    Electrical componentsLG (LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/ Denmark
    Low pressure controllerDANFOSS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
