OMT 10ton Direct Evaporating Ice Block Making Machine adopting aluminium plate to freeze ice block directly, without any chemical or salt, it is a plug and play machine and operated by PLC program control system. It needs to be put into the container because of the large volume.

OMT 10ton Direct Evaporating Ice Block Making Machine Technical Parameters:

<span style="background-color: rgb(102, 153, 255);"

OMT Direct Evaporating Ice Block Making Machine Features:

1. Edible Ice.

    Evaporated directly without using chemical and salt water, the ice is clean and can be eaten directly.

2. Fast freezing time.
    You can get 5kg ice in 140minutes and 3-3.5hrs for 10kg ice, much faster than salt water type ice machine.

3. High Quality Material.
    Ice moulds are made of aluminum plate, mainframe adopts anti-rust and anti-corrosion material--stainless steel.

4. Compact design and saves space.

5. Simple to operate and no need skilled worker.

OMT 10ton Direct Evaporating Ice Block Making Machine Pictures:

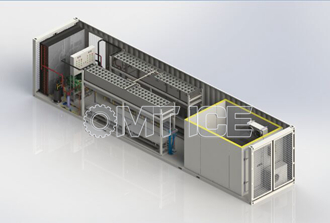

Machine be put into container	Container Inside Struction Chart
Container Inside Struction Chart	Container Inside View

OMT Direct Evaporating Ice Block Making Machine Series:

⊙ Refrigerant: R22 or R404a
⊙ Supply Power: 220V~480V, 50Hz/60Hz, 3P;
⊙ Standard Working Conditions: Input water temp: 21℃; Ambient temp: 25℃; Condensing temp: 40℃;
⊙ Model and specifications can be subject to change without notice.

Machine Configuration List:
