  • OT10 Tube Ice Maker


    OMT 1 ton tube ice maker adopt compact structure design. All compressor and refrigerant parts of this machine are world first class, such as Bitzer compressor from Germany, Danfoss pressure controller from Denmark,and Siemens auto PLC control panel.
    Tube Ice : 28mm or 34mm in diameter; hollow and transparent ice.

    OMT 1ton Tube Ice Maker Technical Parameter:


    Model NumberOT10
    Machine Capacity1000KG/24HRS
    Tube Ice Outer Diameter28MM/34MM
    Tuce Ice Length27MM~50MM
    Material of MainframeStainless Steel 304
    Compressor BrandBock(Bitzer/Copeland)
    RefrigerantR22
    Cooling WayAir Cooled(Water cooled)
    Supply Power220V~480V, 50Hz/60Hz, 3P
    Machine
    Power
    Compressor4HP4.1KW
    Ice Cutter Moter0.37KW
    Circulating Water Pump0.37KW
    Cooling Fan Motor0.36KW
    Machinery Unit Size1600*1350*2010MM
    Machine Unit Weight900KG
    Coolig Tower Weight8T
    Warranty12 Months



    OMT Tube Ice Maker Features:

    1) Strong and Durable parts.
    All compressor and refrigerant parts are world first class.


    2) Compact structure design.
    Short installation period and greatly save installation space.

    3) Low-power consumption and minimal maintenance.

    4) High quality material.
    The machine mainframe is made of stainless steel 304 which is anti-rust and anti-corrosion.

    5)PLC program Logic Controller.
    Provides multiple functions such as automatically turn on and shut down. Ice falling and Ice outgoing automatically, can be connect with automatic ice packing machine or convery belt.




    OMT 1ton Tube Ice Maker Pictures:

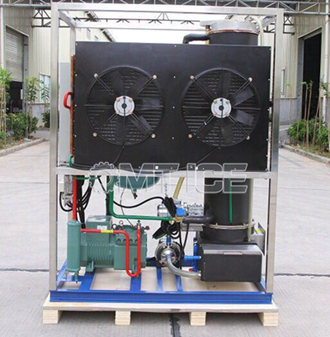

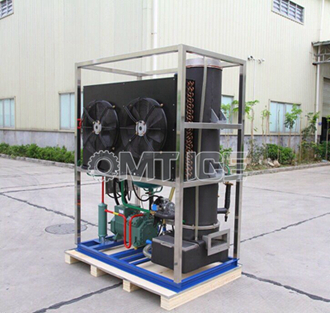

    Machine Front View (Air Cooled)Machine Back View (Air Cooled)

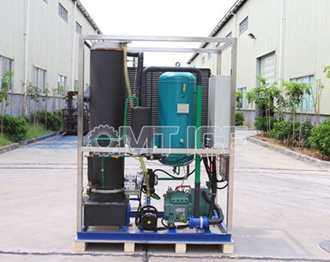

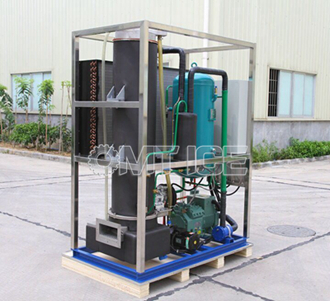

    Machine Side View (Air Cooled)Machine Side View (Air Cooled)

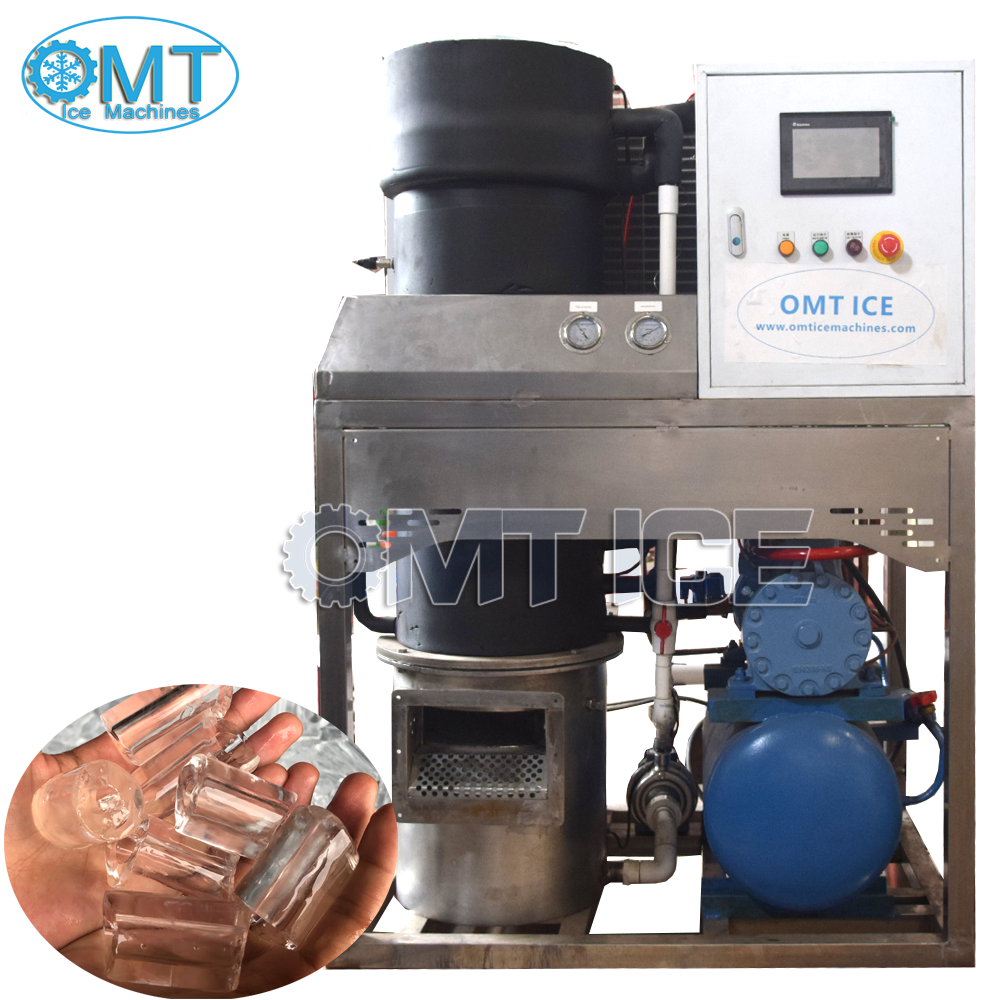

    Machine OutletMachine Outlet With Tube Ice


    OMT Tube Ice Maker Series:

    ItemCapacity
    (Ton/day)
    Compressor Power(HP)Ice Cutter
    Power(KW)
    Circulating Water Pump (KW)Cooling Water
    Pump(KW)
    Cooling Tower
    Pump (KW)
    Cooling Fan
    Motor(KW)
    Machine Unit
     Size(MM)
    OT10140.370.37//0.361600*1350*2010
    OT202120.370.75//0.91550*910*2010
    OT303150.551.11.50.37/1680*950*2200
    OT505200.751.12.20.75/1750*1020*2250
    OT808401.11.52.21.5/2200*1900*2400
    OT10010501.11.52.21.5/2200*1900*2550
    OT120122*251.11.52.21.5/2300*2130*2100
    OT150152*402.22.241.5/2650*2130*2100
    OT200202*502.22.25.51.5/2800*2130*2100


    ⊙ Tube ice outer diameter:Φ28mm and Φ34mm;
    ⊙ Supply Power: 380~420V, 50Hz, 3Phase; 220V, 60Hz, 3Phase; 380V, 60Hz, 3Phase; 440V, 60Hz, 3Phase;
    ⊙ Standard Working Conditions: Input water temp: 21℃; Ambient temp: 25℃; Condensing temp: 40℃;
    ⊙ Model and specifications can be changed without notice.



    Machine Configuration List:


    Component ItemBrand and Origin
    Compressor Bock/Bitzer/Copeland
    PLC controller

    Siemens/ Germany

    Oil separator  EMERSON/ USA
    Electrical componentsLG (LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/ Denmark
    Low pressure controllerDANFOSS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
