  • OT200 20ton Tube Ice Maker


    OMT 20ton CE Approved Tube Ice Maker produces a cylinder ice with a hole inside with outer diameter of 28mm and 34mm , length adjustable from 27mm to 50mm. It is a kind of well distributed water film forming ice system, tube ice maker machine adopt full stainless steel material.



    OMT 20tonTube Ice Maker Technical Parameter:

    Model NumberOT200
    Machine Capacity20,000kg/24 hours
    Tube Ice Outer Diameter28mm,34mm
    Tuce Ice Length27mm~50mm
    Material of MainframeStainless Steel 304
    Compressor BrandBock(Bitzer/Copeland)
    RefrigerantR22
    Cooling WayWater Cooled(Air cooled)
    Supply Power220V~480V, 50Hz/60Hz, 3P
    Machine
    Power
    Compressor(HP)2*5085.97KW
    Ice Cutter Moter(KW)2.2
    Circulating Water Pump(KW)2.2
    Cooling Water Pump(KW)5.5
    Cooling Tower Motor(KW)1.5
    Machinery Unit Size (mm)2800*2130*2100
    Coolig Tower Weight(T)80
    Warranty12 months


    OMT Tube Ice Maker Features:

    1) Strong and Durable parts.
    All compressor and refrigerant parts are world first class.


    2) Compact structure design.
    Shot installation period and greatly save installation space.

    3) Low-power consumption and minimal maintenance.

    4) High quality material.
    The machine mainframe is made of stainless steel 304 which is anti-rust and anti-corrosion.

    5)PLC program Logic Controller.
    Provides multiple functions such as automatically turn on and shut down. Ice falling and Ice outgoing automatically, can be connect with automatic ice packing machine or convery belt.


    OMT 20ton Tube Ice Maker Pictures :

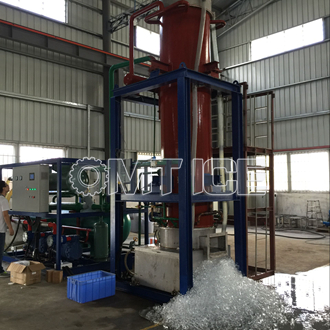

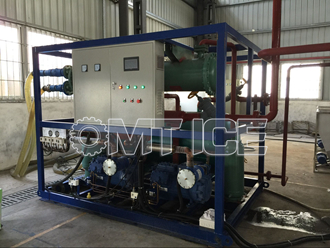

    Machine Whole ViewMachine Unit
    Tube Ice Machine Machine Workshop
    OMT Tube Ice (Quite Thick And Transparent)



    OMT Tube Ice Machine Series:


    ItemCapacity
    (Ton/day)
    Compressor Power(HP)Ice Cutter
    Power(KW)
    Circulating Water Pump (KW)Cooling Water
    Pump(KW)
    Cooling Tower
    Pump (KW)
    Cooling Fan
    Motor(KW)
    Machine Unit
     Size(MM)
    OT10140.370.37//0.361600*1350*2010
    OT202120.370.75//0.91550*910*2010
    OT303150.551.11.50.37/1680*950*2200
    OT505200.751.12.20.75/1750*1020*2250
    OT808401.11.52.21.5/2200*1900*2400
    OT10010501.11.52.21.5/2200*1900*2550
    OT120122*251.11.52.21.5/2300*2130*2100
    OT150152*402.22.241.5/2650*2130*2100
    OT200202*502.22.25.51.5/2800*2130*2100


    ⊙ Tube ice outer diameter:Φ28mm and Φ34mm;
    ⊙ Supply Power: 380~420V, 50Hz, 3Phase; 220V, 60Hz, 3Phase; 380V, 60Hz, 3Phase; 440V, 60Hz, 3Phase;
    ⊙ Standard Working Conditions: Input water temp: 21℃; Ambient temp: 25℃; Condensing temp: 40℃;
    ⊙ Model and specifications can be changed without notice.



    Machine Configuration List:


    Component ItemBrand and Origin
    Compressor Bock/Bitzer/Copeland
    PLC controller

    Siemens/ Germany

    Oil separator  EMERSON/ USA
    Electrical componentsLG (LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFASS/ Denmark
    Low pressure controllerDANFASS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
