  • OT50 Tube Ice Making Machine

    OMT 5 ton tube ice machine is air cooling machine, the stainless steel evaporator and its accessories are installed on a steel frame which forms the evaporator module, which is strong and durable.
    Tube Ice : 28mm or 34mm in diameter; hollow and transparent ice.

    OMT 5ton Tube Ice Making Machine Technical Parameter:



    Model NumberOT50
    Machine Capacity5000kg/24 hours


    Tube Ice Outer Diameter28mm,34mm


    Tube Ice Length27mm~50mm


    Material of MainframeStainless Steel 304


    Compressor BrandBock(Bitzer/Copeland)


    RefrigerantR22


    Cooling WayAir cooled


    Supply Power220V~480V, 50Hz/60Hz, 3P


    Machine
    Power
    Compressor(HP)2321.20KW


    Ice Cutter Motor(KW)0.75


    Circulating Water Pump(KW)1.1


    Cooling Fan Motor(KW)2.2


    Machinery Unit Size (mm)1750*1020*2250


    Machine Unit Weight(kg)2400


    Cooling Tower Weight(T)Tube Ice Maker Part&Condenser are Separate


    Warranty12 months




    OMT Tube Ice Making Machine Features:

    1) Strong and Durable parts.
    All compressor and refrigerant parts are world first class.


    2) Compact structure design.
    Shot installation period and greatly save installation space.

    3) Low-power consumption and minimal maintenance.

    4) High quality material.
    The machine mainframe is made of stainless steel 304 which is anti-rust and anti-corrosion.

    5)PLC program Logic Controller.
    Provides multiple functions such as automatically turn on and shut down. Ice falling and Ice outgoing automatically, can be connect with automatic ice packing machine or convery belt.



    OMT 5ton Tube Ice Making Machine Pictures :

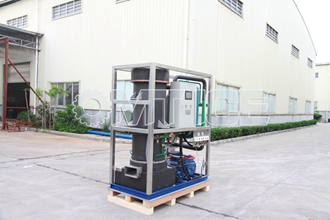

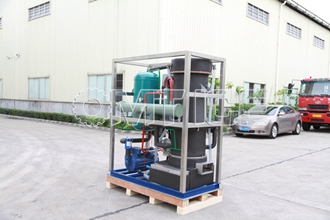

    Machine Front View (Air cooled)Machine Back View (Air cooled)

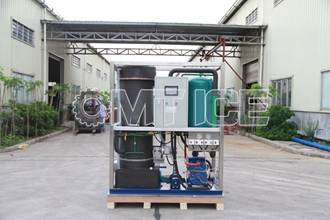

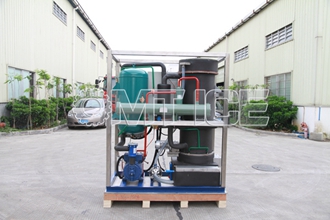

    Machine Side View (Air cooled)Machine Side View (Air cooled)

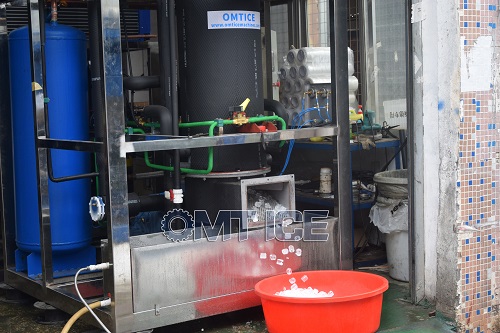

    Machine OutletMachine Outlet With Tube Ice




    OMT Tube Ice Making Machine Series:

    ItemCapacity
    (Ton/day)
    Compressor Power(HP)Ice Cutter
    Power(KW)
    Circulating Water Pump (KW)Cooling Water
    Pump(KW)
    Cooling Tower
    Pump (KW)
    Cooling Fan
    Motor(KW)
    Machine Unit
     Size(MM)
    OT10140.370.37//0.361600*1350*2010
    OT202120.370.75//0.91550*910*2010
    OT303150.551.11.50.37/1680*950*2200
    OT505200.751.12.20.75/1750*1020*2250
    OT808401.11.52.21.5/2200*1900*2400
    OT10010501.11.52.21.5/2200*1900*2550
    OT120122*251.11.52.21.5/2300*2130*2100
    OT150152*402.22.241.5/2650*2130*2100
    OT200202*502.22.25.51.5/2800*2130*2100


    ⊙ Tube ice outer diameter:Φ28mm and Φ34mm;
    ⊙ Supply Power: 380~420V, 50Hz, 3Phase; 220V, 60Hz, 3Phase; 380V, 60Hz, 3Phase; 440V, 60Hz, 3Phase;
    ⊙ Standard Working Conditions: Input water temp: 21℃; Ambient temp: 25℃; Condensing temp: 40℃;
    ⊙ Model and specifications can be changed without notice.



    Machine Configuration List:


    Component ItemBrand and Origin
    Compressor Bock/Bitzer/Copeland
    PLC controller

    Siemens/ Germany

    Oil separator  EMERSON/ USA
    Electrical componentsLG (LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/ Denmark
    Low pressure controllerDANFOSS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
