  • OTB30 Block Ice Making Machine---for 600pcs of 5kg Ice


    OMT block ice making machine, adopts separate design for ice machine and salt water tank, can be installed in the container.
    The machine starts to work once the water pipes and electricity power are connected, also easy to transport.

    It mainly for making 5kg, 10kg and 20kg ice.



    For 5kg ice, it makes 120pcs/4.8hrs and 600pcs/24hrs.

    For 10kg ice, it makes 80pcs/6hrs and 320pcs/24hrs.
    For 20kg ice, it makes 50pcs/8hrs and 150pcs/24hrs.

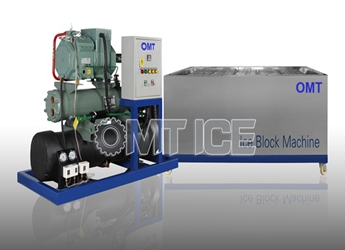

    OMT 3ton Block Ice Machine Pictures:

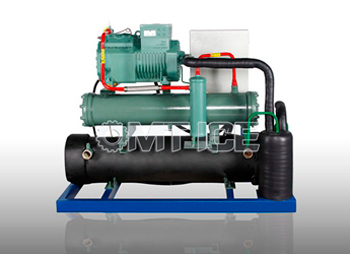

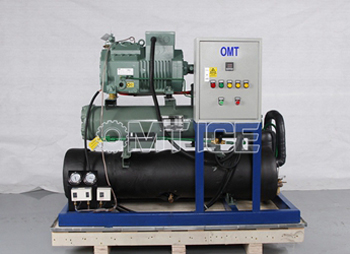

    Machine Front View(Water Cooled)Machine Rear View(Water Cooled)

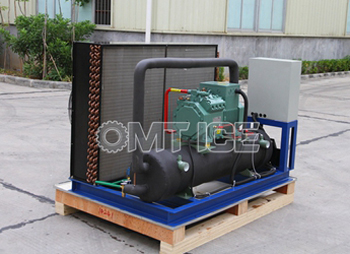

    The Air Cooled Machine Unit (Using Germany Bitzer Compressor)

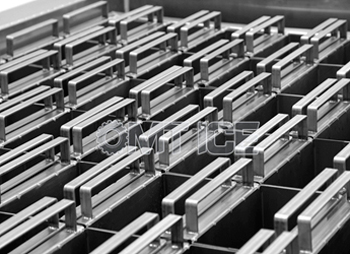

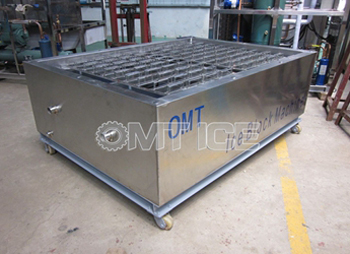

    Ice Molds and Salt Water Tank(Made by High Quality Stainless Steel 304)

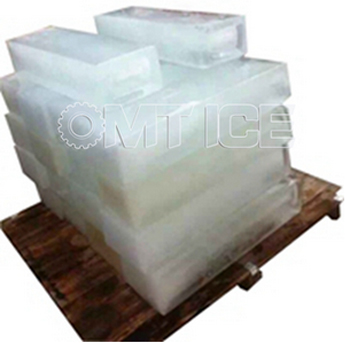

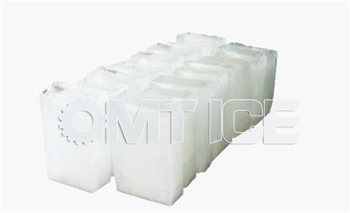

    5kg Block Ice( Strong and hard)10kg Block Ice( Strong and hard)



    OMT Block Ice Making Machine Series:



       Items



     Capacity
     (T/DAY)
     Compressor
      Power(HP)
     Salt Water
     Pump(KW)
    Cooling Water
    Pump(KW)
     Cooling Tower
    Motor(KW)
    Machinery Unit
    Dimensions(MM)
    Salt Water Tank
     Dimensions(MM)
    OTB10141.1/0.182640*1500*1120
    OTB20291.51.10.371560*790*15202450*1010*960
    OTB303142.21.50.551570*780*15202550*1320*1100
    OTB4042031.50.551870*870*17002850*1600*1100
    OTB5052542.20.751870*870*17303600*1450*1200
    OTB6062542.20.751870*900*17303290*2007*1300
    OTB808405.541.52080*960*17505250*1620*1170
    OTB10010505.541.52360*1060*18006080*1700*1130
    OTB150152*407.55.51.52670*1510*17107000*2000*1130
    OTB200203*30115.51.52470*1350*19509985*2007*1500



    *Refrigerant: R22;
    *Supply Power: 220V~480V, 50Hz/60Hz, 3P;

    *Cooling Way: OTB10: Air Cooled; OTB20~OTB200: Water Cooled;

    *Working Condition: Input Water Tem: 10℃; Ambient Temp: 21℃; Condensing Temp: 40℃;

    (Note: The actual ice production will be changed with input water temp and ambient temp.)

    *We will suggest if crane system is needed based on your requirement;
    *Model and specifications can be subject to change without notice.


    Machine Configuration List

    Component ItemBrand and Origin
    Compressor Danfoss/Bitzer/Bock/Copeland
    PLC controllerSiemens/ Germany
    Oil separator  EMERSON/ USA
    Electrical componentsLG(LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/ Denmark
    Low pressure controllerDANFOSS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
