For 10kg ice, it makes 130pcs/6hrs and 520pcs/24hrs.

For 20kg ice, it makes 88pcs/8hrs and 264pcs/24hrs.
For 30kg ice, it makes 90pcs/12hrs and 180pcs/24hrs.

OMT 5ton block ice machine Technical Parameters

Block ice machine Features:

1) Strong and Durable parts.

All compressor and refrigerant parts are world first class.


2) Low energy consumption.

Energy consumption saves up to 30% compare with traditional equipment.


3) Low maintenance, stable performance.


4) High quality material.

The salt water tank and ice moulds are made of stainless steel 304 which is anti-rust and anti-corrosion.


5) Sophisticated heat insulation technology.

The ice making tank adopts high density Polyurethane foam for perfect heat insulation.

OMT 5ton block ice machine Pictures:

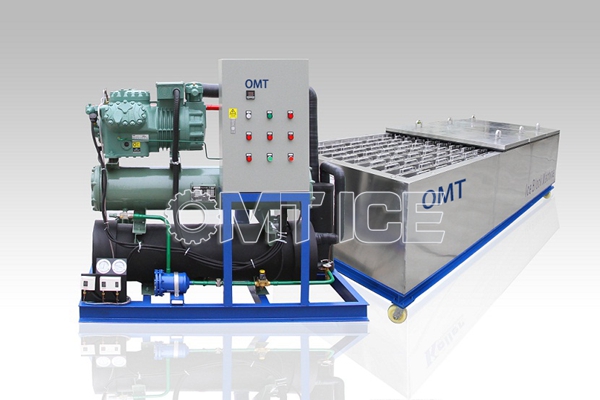

The Water Cooled Machine Unit	The Water Cooled Machine Set
The Air Cooled Machine Unit (Using Germany Bitzer Compressor)
Ice Moulds and Salt Water Tank(Made by High Quality Stainless Steel 304)
5kg Block Ice( Strong and hard)	10kg Block Ice( Strong and hard)

OMT Block Ice Machine Series:

*Refrigerant: R22;
*Supply Power: 220V~480V, 50Hz/60Hz, 3P;
*Cooling Way: OTB10: Air Cooled; OTB20~OTB200: Water Cooled;

*Working Condition: Input Water Tem: 10℃; Ambient Temp: 21℃; Condensing Temp: 40℃;

(Note: The actual ice production will be changed with input water temp and ambient temp.)

*We will suggest if crane system is needed based on your requirement;
*Model and specifications can be subject to change without notice.

Machine Configuration List
