  • OTB100 Ice Block Machine---for 400pcs of 25kg ice


    OMT 10ton ice block machine adopts the first-class compressor--- Bitzer/Bock/Copeland; the famous brand refrigerant components--- Castel/Danfoss,which is high efficiency, energy saving and low maintenance.
    It mainly for making 25kg,50kg and 100kg ice.


    For 25kg ice, it makes 135pcs/8hrs and 405pcs/24hrs.
    For 50kg ice, it makes 100pcs/12hrs and 200pcs/24hrs.
    For 100kg ice, it makes 105pcs/24hrs.


    OMT 10ton Ice Block Machine Technical Parameter:

    ModelOTB100
    Machine Capacity10000KG/24HRS
    Weight of Ice Block25KG/PCS(available for 50KG, 100KG etc.)
    Ice Block Size120*360*750MM
    MaterialWater TankStainless Steel 304
    Ice Moulds
    Ice Freezing Time135PCS/8HRS
    405PCS/24HRS
    RefrigerantR22
    CondenserAir Cooled(Water Cooled)
    Supply Power220V~480V, 50Hz/60Hz, 3P
    Machine Power   Compressor50HP7.28KW
    Salt Water Pump5.5KW
    Cooling Water Pump  4KW
    Air Fan1.5KW
    Machinery Unit Dimension2360*1060*1800
    Salt Water Tank Dimension6080*1700*1130
    Warranty12 Months


    Ice Block Machine Features:

    1) Strong and Durable parts.

         All compressor and refrigerant parts are world first class.


    2) Low energy consumption.

         Energy consumption saves up to 30% compare with traditional equipment.


    3) Low maintenance, stable performance.


    4) High quality material.

         The salt water tank and ice moulds are made of stainless steel 304 which is anti-rust and anti-corrosion.


    5) Sophisticated heat insulation technology.

         The ice making tank adopts high density Polyurethane foam for perfect heat insulation.


    OMT Ice Block Machine Pictures:

    Machine Whole View

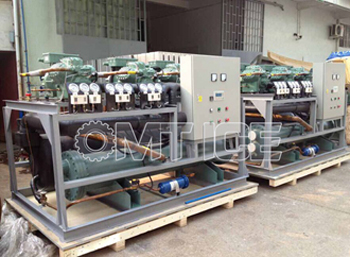

    The Machine Unit (Using Germany Bitzer Compressor)
    Salt Water Tank (Made by High Quality Stainless Steel 304)
    Ice Moulds (Made by High Quality Stainless Steel 304)
    30kg Block Ice( Strong and hard)50kg Block Ice( Strong and hard)

    OMT Ice Block Machine Series:



      Items



     Capacity
     (T/DAY)
     Compressor
      Power(HP)
     Salt Water
     Pump(KW)
    Cooling Water
    Pump(KW)
     Cooling Tower
    Motor(KW)
    Machinery Unit
    Dimensions(MM)
    Salt Water Tank
     Dimensions(MM)
    OTB10141.1/0.182640*1500*1120
    OTB20291.51.10.371560*790*15202450*1010*960
    OTB303142.21.50.551570*780*15202550*1320*1100
    OTB4042031.50.551870*870*17002850*1600*1100
    OTB5052542.20.751870*870*17303600*1450*1200
    OTB6062542.20.751870*900*17303290*2007*1300
    OTB808405.541.52080*960*17505250*1620*1170
    OTB10010505.541.52360*1060*18006080*1700*1130
    OTB150152*407.55.51.52670*1510*17107000*2000*1130
    OTB200203*30115.51.52470*1350*19509985*2007*1500


    *Refrigerant: R22;
    *Supply Power: 220V~480V, 50Hz/60Hz, 3P;
    *Cooling Way: OTB10: Air Cooled; OTB20~OTB200: Water Cooled(Air cooled);
    *Working Condition: Input Water Tem: 10℃; Ambient Temp: 21℃; Condensing Temp: 40℃;
    (Note: The actual ice production will be changed with input water temp and ambient temp.)
    *We will suggest if crane system is needed based on your requirement;
    *Model and specifications can be subject to change without notice.


    Machine Configuration List:

    Component ItemBrand and Origin
    Compressor Danfoss/Bitzer/Bock/Copeland
    PLC controller

    Siemens/Germany

    Oil separator  EMERSON/USA
    Electrical componentsLG(LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/Denmark
    Low pressure controllerDANFOSS/Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
