  • OTB10 Ice Block Machine---for 400pcs of 2.5kg Ice


    OMT 1ton Ice block machine can especially design to make 2.5kg or 2kg small ice block to meet with customers needs. This model is ideal ice maker for beginners, it makes max. quanity of ice block in a short time. For 2.5kg ice,   it makes 81pcs/4.8hrs and 405pcs/24hrs.
    Now more and more customers from Nigeria, Ghana, South Africa etc. are coming to OMT to buy this machine for making small ice block .

    1Ton salt water cooling type Ice Block Machine testing video






    Except for 2.5kg,we also have 5kg and 10kg for option:
    For 5kg ice, it makes 40pcs/4.8hrs and 200pcs/24hrs;
    For 10kg ice, it makes 28pcs/6hrs and 112pcs/24hrs.


    The ice block machine unit and salt water tank is a complete unit, no need installation.
    And the machine starts to work once the water pipes and electricity power are connected, also easy to transport.


    OMT 2ton Ice Block Machine Technical Parameter:

    ModelOTB10
    Machine Capacity1000KG/24HRS
    Weight of Ice Block2.5KG/PCS(available for 5KG, 10KG etc.)
    Ice Block Dimension75*110*460MM
    MaterialWater TankStainless Steel 304
    Ice Moulds
    Ice Freezing Time81PCS/4.8HRS
    405PCS/24HRS
    RefrigerantR22
    CondenserAir Cooled(Water cooled)
    Supply Power220V~480V, 50Hz/60Hz, 3P
    Machine PowerCompressor6HP7.28KW
    Salt Water Pump1.1KW
    Cooling Water Pump/
    Air Fan 0.18KW
    Machinery Unit Dimension2640*1500*1120MM
    Salt Water Tank Dimension
    Warranty12 Months



    OMT Ice Block Machine Features:

    1) Strong and Durable parts.

    All compressor and refrigerant parts are world first class.


    2) Low energy consumption.

    Energy consumption saves up to 30% compare with traditional equipment.


    3) Low maintenance, stable performance.


    4) High quality material.

    The salt water tank and ice moulds are made of stainless steel 304 which is anti-rust and anti-corrosion.


    5) Sophisticated heat insulation technology.

    The ice making tank adopts high density Polyurethane foam for perfect heat insulation.



    OMT 1ton Ice Block Machine Pictures:

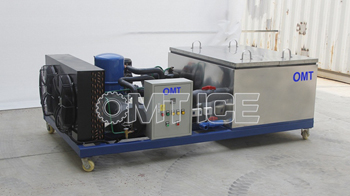

    The Air Cooled Ice Block Machine Set(Using Denmark Danfoss Compressor)

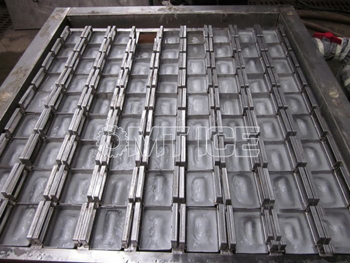

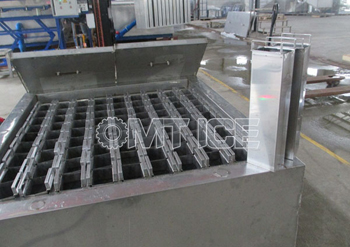

    2.5kg Ice Molds and Salt Water Tank (Made by High Quality Stainless Steel 304)

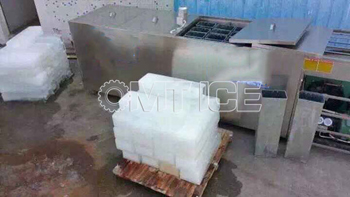

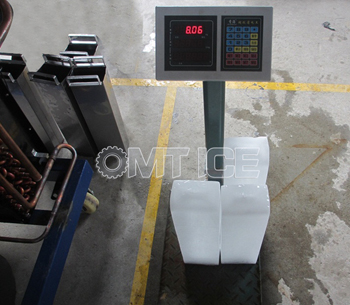

    2.5kg Strong, Hard and Edible Ice



    OMT Ice Block Machine Series:


      Items



     Capacity
     (T/DAY)
     Compressor
      Power(HP)
     Salt Water
     Pump(KW)
    Cooling Water
    Pump(KW)
     Cooling Tower
    Motor(KW)
    Machinery Unit
    Size(MM)
    Salt Water Tank
     Dimensions (MM)
    OTB10141.1/0.182640*1500*1120
    OTB20291.51.10.371560*790*15202450*1010*960
    OTB303142.21.50.551570*780*15202550*1320*1100
    OTB4042031.50.551870*870*17002850*1600*1100
    OTB5052542.20.751870*870*17303600*1450*1200
    OTB6062542.20.751870*900*17303290*2007*1300
    OTB808405.541.52080*960*17505250*1620*1170
    OTB10010505.541.52360*1060*18006080*1700*1130
    OTB150152*407.55.51.52670*1510*17107000*2000*1130
    OTB200203*30115.51.52470*1350*19509985*2007*1500



    *Refrigerant: R22;
    *Supply Power: 220V~480V, 50Hz/60Hz, 3P;

    *Cooling Way: OTB10: Air Cooled; OTB20~OTB200: Water Cooled;

    *Working Condition: Input Water Tem: 10℃; Ambient Temp: 21℃; Condensing Temp: 40℃;

    (Note: The actual ice production will be changed with input water temp and ambient temp.)

    *We will suggest if crane system is needed based on your requirement;
    *Model and specifications can be subject to change without notice.



    Machine Configuration List

    Component ItemBrand and Origin
    Compressor Danfoss/Bitzer/Bock/Copeland
    PLC controller

    Siemens/Germany

    Oil separator  EMERSON/USA
    Electrical componentsLG (LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/Denmark
    Low pressure controllerDANFOSS/Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
