  • OTB10 Commercial Ice Block Machine---for 200pcs of 5kg Ice


    OMT 1ton commercial ice block machine is new design, the ice machine and salt water tank is a integrated unit, no need installation.
    The machine starts to work once the water pipes and electricity power are connected, also easy to transport.
    It mainly for making 2.5kg, 5kg or 10kg ice.


    For 2.5kg ice, it makes 81pcs/4.8hrs and 405pcs/24hrs.

    For 5kg ice, it makes 40pcs/4.8hrs and 200pcs/24hrs.

    For 10kg ice, it makes 28pcs/6hrs and 112pcs/24hrs.


    OMT 1ton Commercial Ice Block Machine Technical Parameters


    ModelOTB10
    Machine Capacity1000KG/24HRS
    Weight of Ice Block5KG/PCS(available for 2.5KG, 10KG etc.)
    Ice Block Size80*165*500MM
    MaterialWater TankStainless Steel 304
    Ice Moulds
    Ice Freezing Time40PCS/4.8HRS
    200PCS/24HRS
    RefrigerantR22
    CondenserAir Cooled(Water Cooled)
    Supply Power220V~480V, 50Hz/60Hz, 3P
    Machine PowerCompressor6HP7.28KW
    Salt Water Pump1.1KW
    Cooling Water Pump/
    Air Fan 0.18KW
    Machinery Unit Dimension2640*1500*1120MM
    Salt Water Tank Dimension
    Warranty12 Months


    Commercial Ice Block Machine Features:

    1) Strong and Durable parts.

    All compressor and refrigerant parts are world first class.


    2) Low energy consumption.

    Energy consumption saves up to 30% compare with traditional equipment.


    3) Low maintenance, stable performance.


    4) High quality material.

    The salt water tank and ice moulds are made of stainless steel 304 which is anti-rust and anti-corrosion.


    5) Sophisticated heat insulation technology.

    The ice making tank adopts high density Polyurethane foam for perfect heat insulation.



    OMT 1ton Commercial Ice Block Machine Pictures:

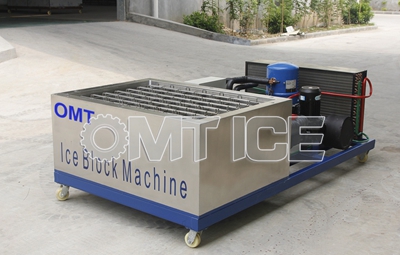

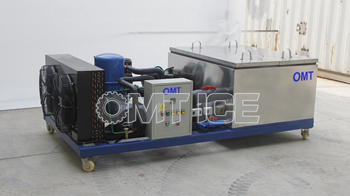

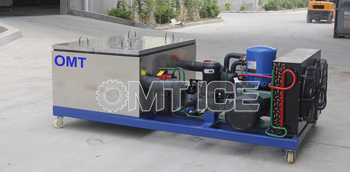

    The Air Cooled Commercial Ice Block Machine Set(Using Denmark Danfoss Compressor)

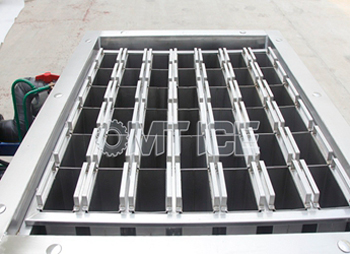

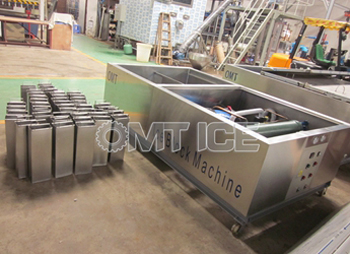

    5kg Ice Moulds and Salt Water Tank (Made by High Quality Stainless Steel 304)
    5kg Strong, Hard and Edible Ice



    OMT Commercial Ice Block Machine Series:



      Items



     Capacity
     (T/DAY)
     Compressor
      Power(HP)
     Salt Water
     Pump(KW)
    Cooling Water
    Pump(KW)
     Cooling Tower
    Motor(KW)
    Machinery Unit
    Size(MM)
    Salt Water Tank
     Dimensions(MM)
    OTB10141.1/0.182640*1500*1120
    OTB20291.51.10.371560*790*15202450*1010*960
    OTB303142.21.50.551570*780*15202550*1320*1100
    OTB4042031.50.551870*870*17002850*1600*1100
    OTB5052542.20.751870*870*17303600*1450*1200
    OTB6062542.20.751870*900*17303290*2007*1300
    OTB808405.541.52080*960*17505250*1620*1170
    OTB10010505.541.52360*1060*18006080*1700*1130
    OTB150152*407.55.51.52670*1510*17107000*2000*1130
    OTB200203*30115.51.52470*1350*19509985*2007*1500


    *Refrigerant: R22;
    *Supply Power: 220V~480V, 50Hz/60Hz, 3P;

    *Cooling Way: OTB10: Air Cooled; OTB20~OTB200: Water Cooled;

    *Working Condition: Input Water Tem: 10℃; Ambient Temp: 21℃; Condensing Temp: 40℃;

    (Note: The actual ice production will be changed with input water temp and ambient temp.)

    *We will suggest if crane system is needed based on your requirement;
    *Model and specifications can be subject to change without notice.



    Machine Configuration List

    Component ItemBrand and Origin
    Compressor Danfoss/Bitzer/Bock/Copeland
    PLC controller

    Siemens/Germany

    Oil separator  EMERSON/USA
    Electrical componentsLG(LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/Denmark
    Low pressure controllerDANFOSS/Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
