  • OTB150 Industrial Block Ice Machine---for 600pcs of 25kg ice


    OMT 15ton industrial block ice machine adopts new design(separate unit between ice machine unit and salt water tank), easy to install..
    The machine starts to work once the water pipes and electricity power are connected, also easy to transport.
    It mainly for making 25kg, 30kg or 50kg ice.


    For 25kg ice, it makes 200pcs/8hrs and 600pcs/24hrs.

    For 30kg ice, it makes 250pcs/12hrs and 500pcs/24hrs.

    For 50kg ice, it makes 200pcs/16hrs and 300pcs/24hrs.



    OMT 15ton Industrial Block Ice Machine Technical Parameters


    ModelOTB150
    Machine Capacity15000KG/24HRS
    Weight of Ice Block25KG/PCS (available for 30KG, 50KG etc.)
    Ice Block Size120*360*780MM
    MaterialWater TankStainless Steel 304
    Ice Moulds
    Ice Freezing Time200PCS/8HRS
    600PCS/24HRS
    RefrigerantR22
    CondenserWater Cooled(Air Cooled)
    Supply Power220V~480V, 50Hz/60Hz, 3P
    Machine PowerCompressor2*40HP74.16KW
    Salt Water Pump7.5KW
    Cooling Water Pump5.5KW
    Air Fan1.5KW
    Machinery Unit Dimension2670*1510*1710MM
    Salt Water Tank Dimension7000*2000*1130MM
    Warranty12 Months


    OMT Industrial Block Ice Machine Features:

    1) Strong and Durable parts.

    All compressor and refrigerant parts are world first class.


    2) Low energy consumption.

    Energy consumption saves up to 30% compare with traditional equipment.


    3) Low maintenance, stable performance.


    4) High quality material.

    The salt water tank and ice moulds are made of stainless steel 304 which is anti-rust and anti-corrosion.


    5) Sophisticated heat insulation technology.

    The ice making tank adopts high density Polyurethane foam for perfect heat insulation.

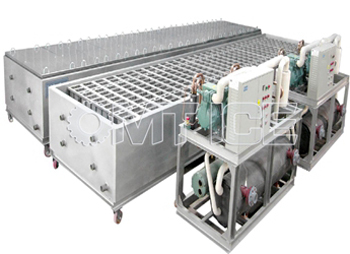

    OMT 15ton Industrial Block Ice Machine Pictures:

    Machine Front ViewMachine Side View
    Machine Unit and Machine Set(Using Germany Bitzer Compressor)
    Ice Molds and Salt Water Tank(Made by High Quality Stainless Steel 304)
    25kg Strong, Hard and Edible Block Ice50kg Strong, Hard and Edible Block Ice

    OMT Industrial Block Ice Machine Series:



      Items



     Capacity
     (T/DAY)
     Compressor
      Power(HP)
     Salt Water
     Pump(KW)
    Cooling Water
    Pump(KW)
     Cooling Tower
    Motor(KW)
    Machinery Unit
    Size(MM)
    Salt Water Tank
     Dimensions(MM)
    OTB10141.1/0.182640*1500*1120
    OTB20291.51.10.371560*790*15202450*1010*960
    OTB303142.21.50.551570*780*15202550*1320*1100
    OTB4042031.50.551870*870*17002850*1600*1100
    OTB5052542.20.751870*870*17303600*1450*1200
    OTB6062542.20.751870*900*17303290*2007*1300
    OTB808405.541.52080*960*17505250*1620*1170
    OTB10010505.541.52360*1060*18006080*1700*1130
    OTB150152*407.55.51.52670*1510*17107000*2000*1130
    OTB200203*30115.51.52470*1350*19509985*2007*1500


    *Refrigerant: R22;
    *Supply Power: 220V~480V, 50Hz/60Hz, 3P;

    *Cooling Way: OTB10: Air Cooled; OTB20~OTB200: Water Cooled;

    *Working Condition: Input Water Tem: 10℃; Ambient Temp: 21℃; Condensing Temp: 40℃;

    (Note: The actual ice production will be changed with input water temp and ambient temp.)

    *We will suggest if crane system is needed based on your requirement;
    *Model and specifications can be subject to change without notice.


    Machine Configuration List

    Component ItemBrand and Origin
    Compressor Danfoss/Bitzer/Bock/Copeland
    PLC controller

    Siemens/Germany

    Oil separator  EMERSON/USA
    Electrical componentsLG(LS)/South Korea
    Solenoid valve  CASTAL/Italy
    High pressure controllerDANFOSS/ Denmark
    Low pressure controllerDANFOSS/ Denmark
    Expansion valveCASTAL/Italy
    CondenserJianguo/Xuemei
    EvaporatorOMEX/Guangzhou
